Subject to a comprehensive and careful restoration throughout 2023/ 24, a great example of the desirable and attractive early AML V8.
Extensive files of works photos detailing the restoration along with comprehensive works logs and invoices available for examination.

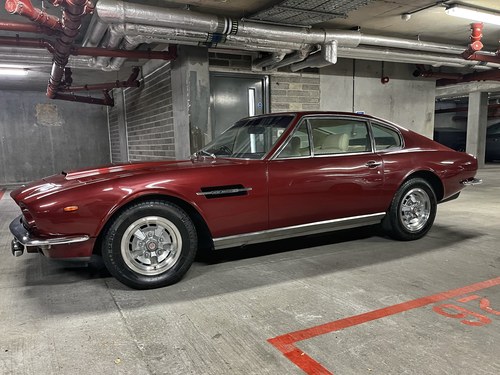

Vehicle: Aston AMV8 Coupe
Vin: V8/ 10771/ RCA
Mileage: 53k
Engine number: V/ 540/ 621
Full mechanical overhaul carried out by Nicholas Mee Ltd in Autumn 2024.
Bodywork and other restoration work carried out across 2023-24 by marque specialists.
Sensible offers considered. Body work & welding:
• Outer sills badly corroded and hidden by chrome sill covers, both sides.
• Outer sills completely replaced with new and inner sills weld repaired on both sides.
• Rust protection applied
• Numerous small patches of rust removed from underside and repaired
• Rust protection textured coating applied to whole of underside
• Bonnet inner frame bonding has failed causing the bonnet to become loose and caused a fowl at the front
edge
• Bonnet removed, frame corrected and re-bonded to provide clearance.
• Re-paint front end of car to scuttle area where micro blistering was evident
• Remove sunroof as not operating smoothly to find extensive rust, carried out complete repair, seal and refit.
• Rust protection applied to roof area behind and around sunroof frame
•Full re-spray.
• Remove all floor coverings and apply rust protective paint to whole inner floor area
• New high quality carpet set made and fitted including bottoms of doors
• Upholstery repairs to front and rear seats
• Fit new headlining
• Full rebuild of interior and exterior trim, replacing seals, lenses and gaskets as deemed necessary
Engine:
• Empty & clean out fuel system
• Remove air filter boxes, inlet manifolds and injector system for clean out
• Rocker cover gaskets leaking, removed and replaced
• Replaced fuel hoses
• Remove & replace thermostat, water pump gasket
• Remove & replace crank shaft oil seal (leaking)
• Remove & replace 2 x fan pulley bearings (worn)
• Aqua blast filter housings, manifolds and rocker gaskets, powder coated silver (Air filter housings were later
re-blasted, filled with high temp Novol filler and painted with high temp paint for a better appearance)
• Remove faulty fuel pump and replace
• Fit new iridium spark plugs
• Degrease, aqua blast & paint/ polish various engine components prior to reassembly with new gaskets
• Check fluids, and run up engine
• Removed radiator (leaking), taken for refurbishment and refit
Mechanical:
• Removal of diff/ rear brake assembly (rear brakes partly seized)
• Degrease & aqua blast all components
• Refurbish rear brakes: stainless steel pistons, seals, pads (including handbrake) & paint
• Remove and replace front diff seal (leaking)
• Repaint diff and refit
• Track rod ends removed and replaced (worn)
Parts purchased & fitted:
• Fuel hoses
• Fuel pump
• Fuel filter cartridge
• Rocker cover gaskets
• Fan pulley bearings x 2
• Thermostat
• Water pump gasket
• Crank shaft oil seal
• Spark plugs (Iridium)
• Cam cover gaskets
• Inlet manifold seal
• Oil
• Oil filter
• Sump plug washer
• Lucas L658 lens 7 chrome trim x 2
• L594 indicator lens unit x 2
• L661 reverse light lens
• L550 number plate light x 2
• L661 gasket
• L782 rear light lens x 2
• L782 seal & screw set x 2
• 510906 lamp lens body gaskets x 2
• L734 side marker lens x 2
• Outer sill RH
• Outer sill LH
• Inner sill repair section RH
• Inner sill repair section LH
• Track rod ends x 2
• Pinion oil seal
• Diff gasket
• Rear brake caliper service kit x 2
• Rear brake pads
• Handbrake kit
